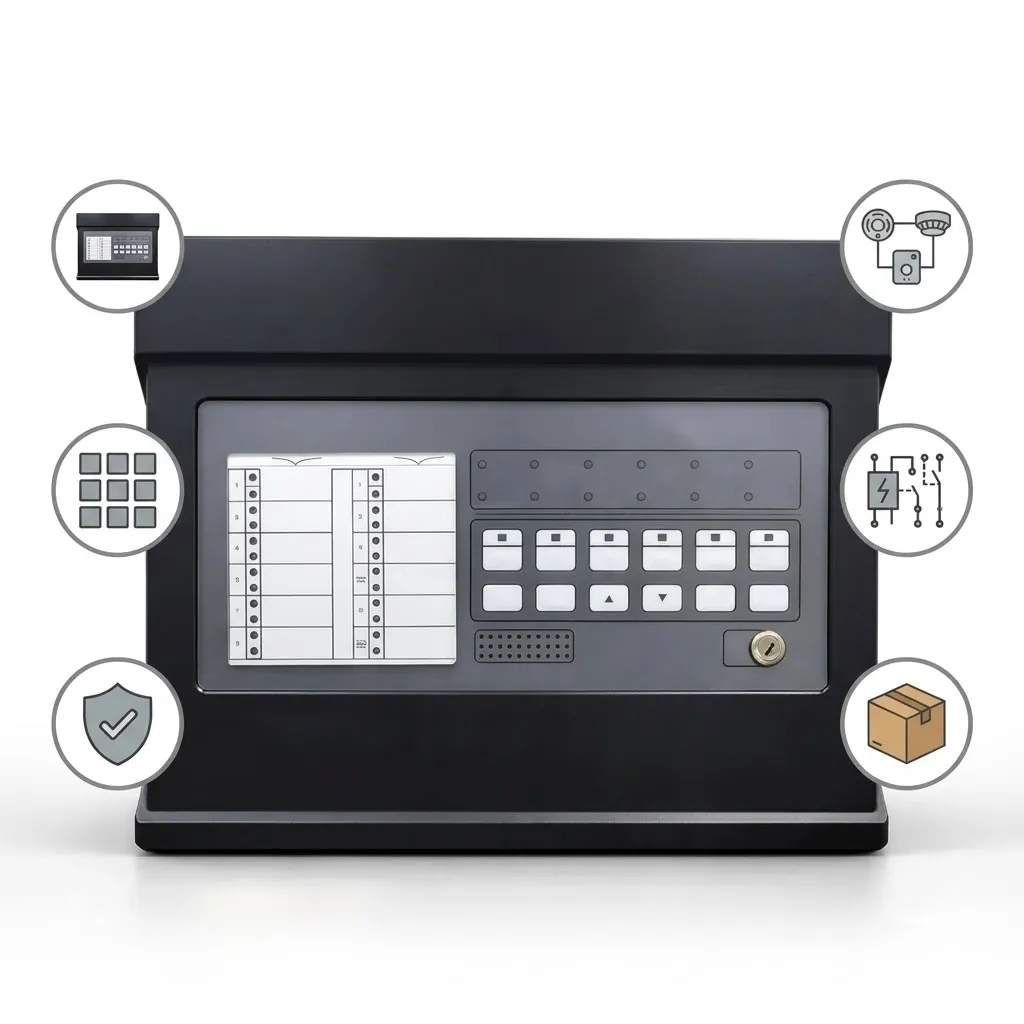

TNA TXC7012 12 Zone Conventional Fire Alarm Control Panel. EN54-2 & EN54-4 certified. Input voltage: AC 220V (187V-242V), 50Hz. Main circuit current: 2.8A. Backup battery: 12.8V, 4Ah. Zone device capacity: 30 devices per zone. Alarm bell output current: 0.5A per zone. Dimensions: 311 x 60 x 251 mm. Weight: 1.5 kg. IP30 rated. Price mentioned per piece.
Available sizes
Available colorsBlack / Grey
The TXC7012 is a conventional fire alarm control panel designed for use in small to medium-sized commercial or industrial installations. It supports up to 12 zones of conventional fire alarm devices (smoke detectors, heat detectors, manual call points) and features separate outputs for alarm notification appliances and auxiliary equipment. The panel complies with classic conventional architectures (zones instead of addressable loops). The unit is housed in a metal enclosure, includes LED indicators for power, fault, zone-alarm, and possesses a user-friendly front-face interface for status monitoring and system controls such as Reset, Silence, and Latch. Key Features: Zone Capacity: 12 Conventional Zones, each capable of monitoring fire detection; Device Capacity: Supports a large number of conventional field devices (e.g., up to 30 detectors or manual call points) per zone; Flexible Zone Configuration – Available in 1, 2, 4, 8, or 12 zones (TXC7001–TXC7012), each supporting up to 30 detection devices; Wide Compatibility – Seamlessly works with conventional detectors (TXC7101, TXC7111), manual call points (TXC7141), and sounder strobes (TXC7301); Compliance: Certified to meet European standards, typically EN54-2 (Control and Indicating Equipment) and EN54-4 (Power Supply Equipment); User Interface: Features a simple, user-friendly interface with clear LED indicators for separate Fire and Fault status for each of the 12 zones, and system-wide indicators for Power, Battery, Fault, and General Alarm; Monitored Sounder/Bell Outputs: Includes multiple supervised outputs for connecting alarm sounders and strobes; Auxiliary Power Outputs: Provides power for external devices; Fault Relay: Dedicated NC/NO output for signaling general system faults (e.g., power failure, zone fault); Fire Alarm Relay: Dedicated NC/NO output for signaling a general fire alarm to external systems (e.g., HVAC shutdown, security systems). Industrial Uses / Applications: Office Buildings; Retail Stores; Schools & Institutions; Warehouses; Apartments; Industrial Sites.
Safety Information
Fire alarm control panel for indoor use. Install as per manufacturer instructions and local fire safety codes. Ensure proper wiring and backup battery connection. Test the system regularly. Do not open the enclosure while powered. Replace backup battery as recommended.
EN54-2
Verified
EN54-4
Verified
Hot Aerosol Fire Extinguishing Device. Model: QRR0.01G. Automatic fire suppression for electrical panels. Operating temperature: -50°C to +90°C. Service life: 10 years. Extinguishing density: 100 g/m³. Activation time: ≤15 seconds. Compliant with EN 15276-1:2019 & EN 15276-2:2019. Price mentioned per piece.
T1601 Covid Protection Infrared Thermometer (Model AD801). Non-contact infrared measurement. Measuring distance: 3 cm to 5 cm. Measurement range: 34°C to 42.9°C. Accuracy: ±0.2°C. Instant reading in approx. 1 second. 16 measurement records. Three-color backlight display (Green/Orange/Red). Powered by 2 x AAA batteries. Price mentioned per piece.
FLIR K2 Thermal Imaging Camera. 160 x 120 IR resolution. 3" LCD display (320 x 240 pixels). Temperature range: -20°C to +150°C and 0°C to +500°C. Thermal sensitivity: <100 mK. IP67 water-resistant, 2m drop-resistant. Rechargeable Li-ion battery (approx. 4 hours). Includes 2 batteries, charger, strap, power supply, USB cable. Price mentioned per piece.
BRK Electronics 83RN Smoke Alarm. Dual-ionization chamber sensor. Power source: AC 220V + 9V battery backup. Alarm sound level: 85 dB at 10 ft. Operating temperature: 4°C to 38°C. Humidity range: 10% to 90% RH. Dimensions: 5.61" dia x 1.63" height. Weight: 6.4 oz (approx. 0.18 kg). UL 217 & NFPA 72 approved. Price mentioned per piece.
