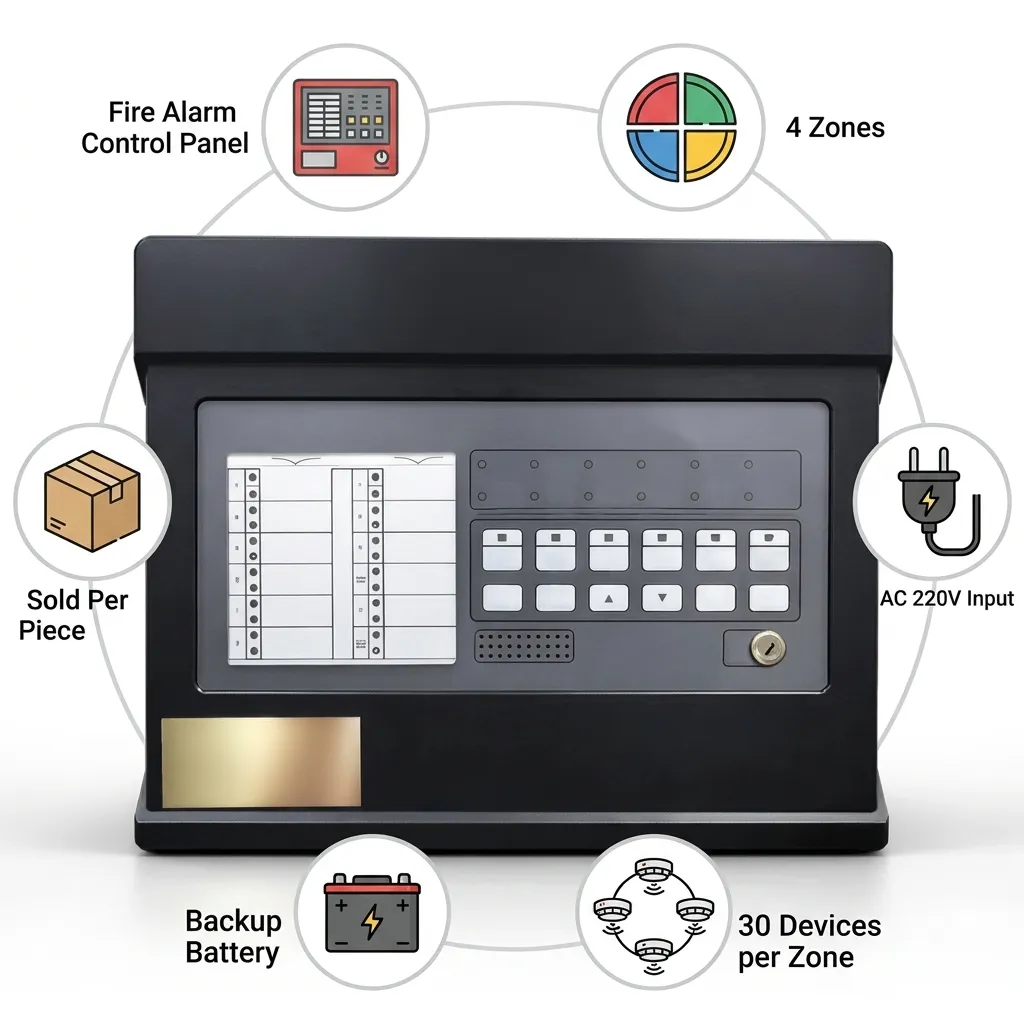

The TXC7004 is a conventional fire alarm control panel designed for smaller-to-medium sized installations. It supports a conventional device architecture where individual detectors, manual call points and sounder circuits are wired to zone inputs rather than addressable loops. The panel features up to 4 zones (model TXC7004) in the series and is housed in a compact metal enclosure with battery backup. Each zone is capable of supporting up to 30 conventional devices. Key Features: Four conventional fire alarm zones with support for up to 30 devices per zone; Mains supply: AC 220 V (187 V ~ 242 V), 50 Hz; Built-in backup battery provision (12.8 V, 4 Ah) to sustain operation during mains failure; Dedicated alarm (bell) output current rating of 0.5A per zone; auxiliary power outputs (2 × 0.5A) for accessory devices; Enclosure dimensions: 311 mm (W) × 60 mm (D) × 251 mm (H); installation hole spacing (horizontal 270 mm × vertical 215 mm); Operating ambient: 0°C to +40°C; relative humidity up to 95% non-condensing; IP rating: IP30 (indoor installation) for standard model. Industrial Uses / Applications: Small offices, retail outlets; Schools and clinics; Warehouses with modest zone coverage; Residential/apartment fire detection support.
